Description

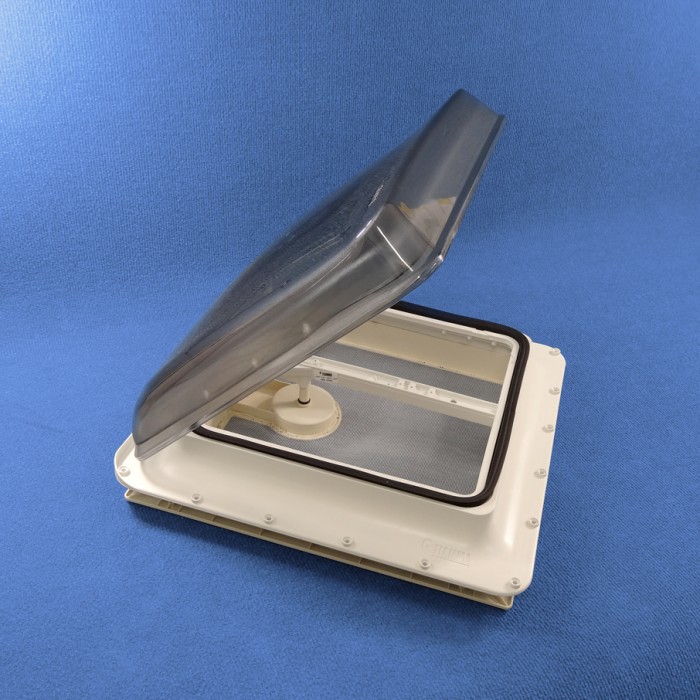

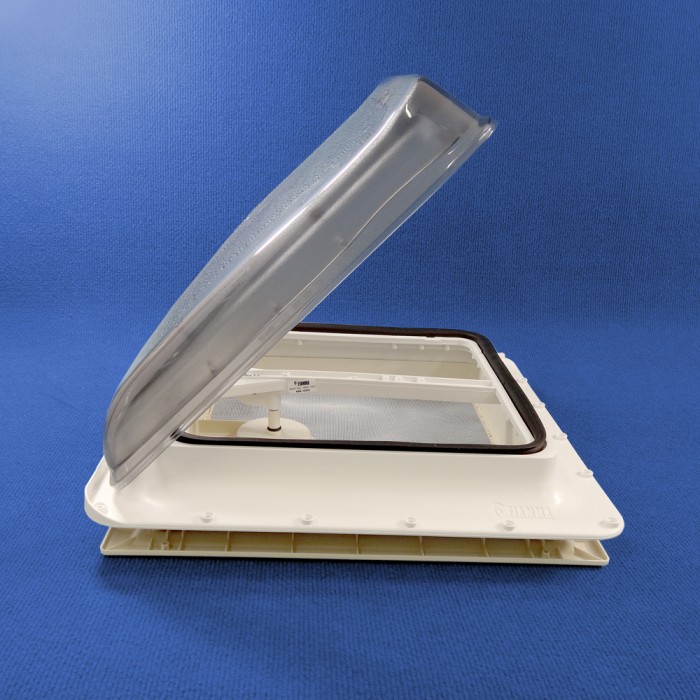

This is a standard roof vent without a fan. It hinges open with a winder operated from inside your caravan or motorhome.

Features

• The cover is crystal – tinted and allows light through
• Includes internal trim and flyscreen.
• Requires sealer, e.g., silicone, on the outside.
• Provides permanent ventilation.
• UV ray resistant materials
• 1 year warranty.

Specifications

• Model: 008617
• Other Identifiers: 50400262
• Brand: Fiamma
• Original Model: 04328B01D
• Barcode: 8004815423179
• Fits from 360 mm to 400 mm square hole in the ceiling.

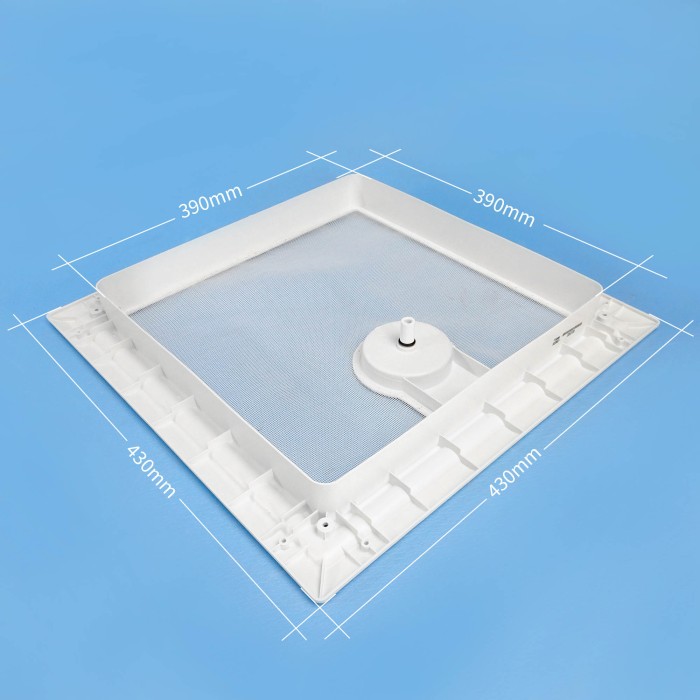

• Overall size on inner flange is 430 mm square.
• The outer flange is 455 mm square.
• Height above roof when closed – 85 mm
• Suits roof thickness 25 mm to 45 mm (Extension handle for roof thickness up to 85 mm is listed in the related products below)
• Permanent ventilation 80 cm²
• Made in Italy.
• Shipping Weight: 3.35 Kgs.
• Shipping Dimensions: 13 cm x 47 cm x 47 cm.

Our Comments

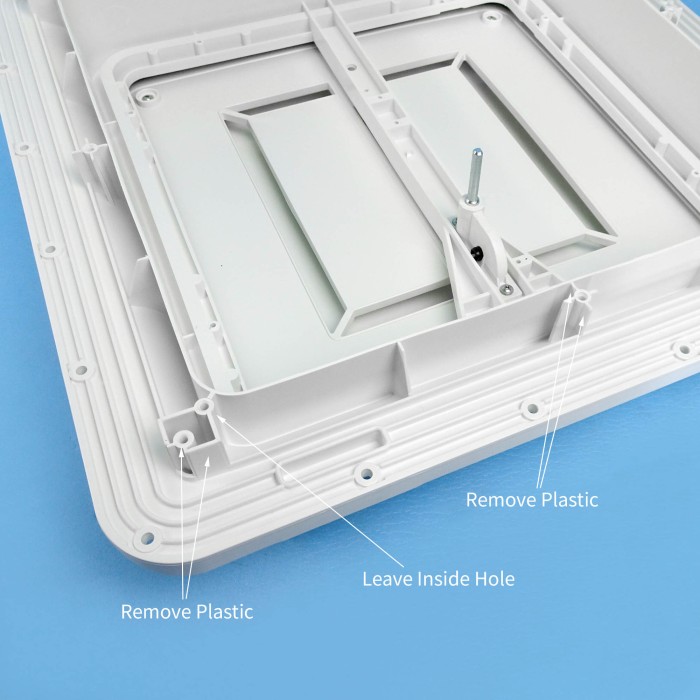

While quoted as suiting 400 x 400 mm openings, it is possible to trim some hidden edges to get it to fit a 360 mm hole.
