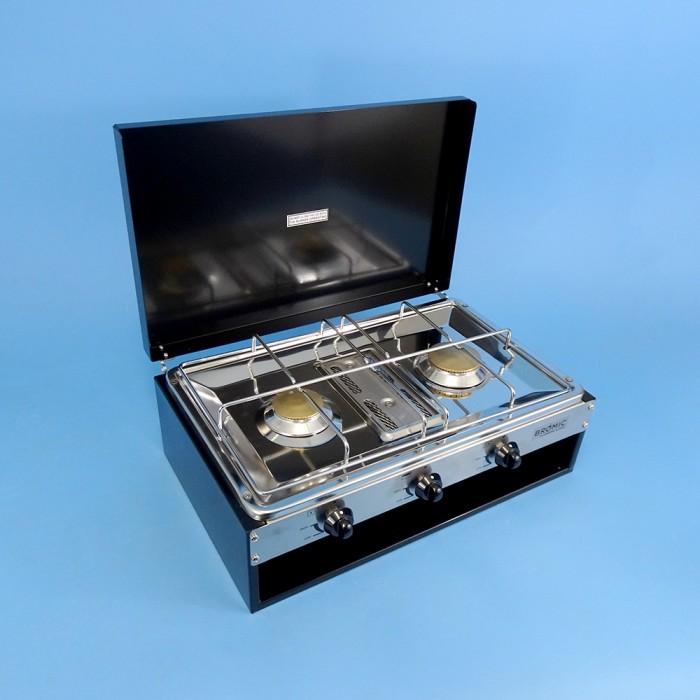

Bromic LIDO Junior C – 2 Burner Cooktop & Grill – With Flame Safety

,

Bromic LIDO Junior C – 2 Burner Cooktop & Grill – With Flame Safety

380.00£

Description

The Bromic (formerly Lido Junior C) stove, 2 burner with grill is a low pressure gas stove / griller combination that requires it to be connected to the gas source, such as a gas bottle fitted with a regulator.

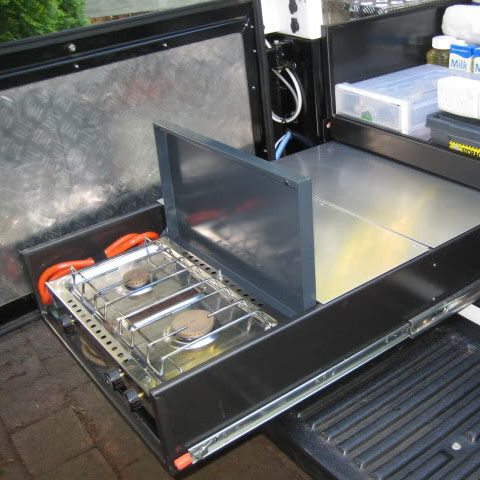

This model is suitable for indoor use in caravans and motorhomes. It can of course also be used for camper trailers and outdoor kitchens.

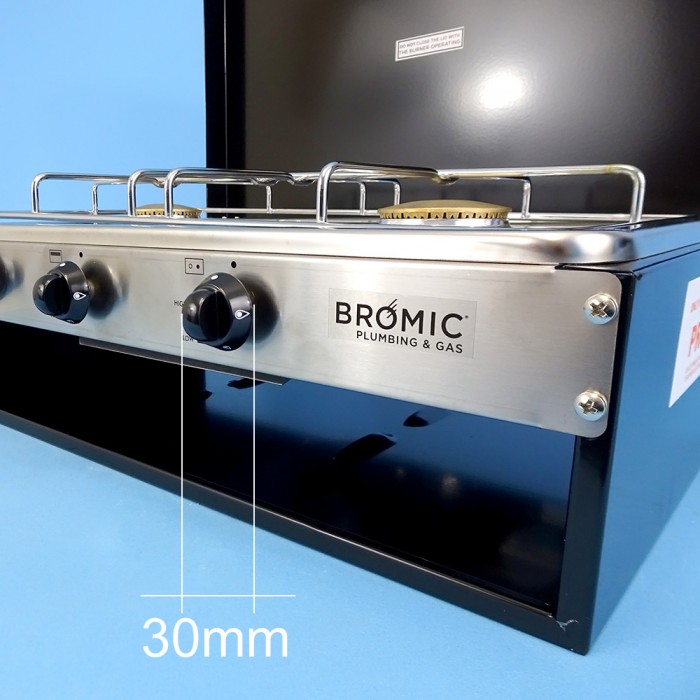

The main cooktop is fully stainless steel with painted base and lid.

Features

  • Sturdy and compact cooker with grill
  • 2020068 specifically designed for caravans, recreational vehicles and weekenders
  • Brass burners
  • Stainless steel cooktop with painted base and hinged lid
  • Requires hose and regulator
  • Low pressure appliance
  • AGA Approval No. 4779
  • 1 year warranty.

Specifications

  • Model: 2020068
  • Other Identifiers: 700-05502, 040326, 2020068
  • Brand: Bromic – Lido
  • Original Model: 2020068
  • Barcode: 9320688020956
  • Weight (kg): 3.6
  • For use with: LPG (Propane)

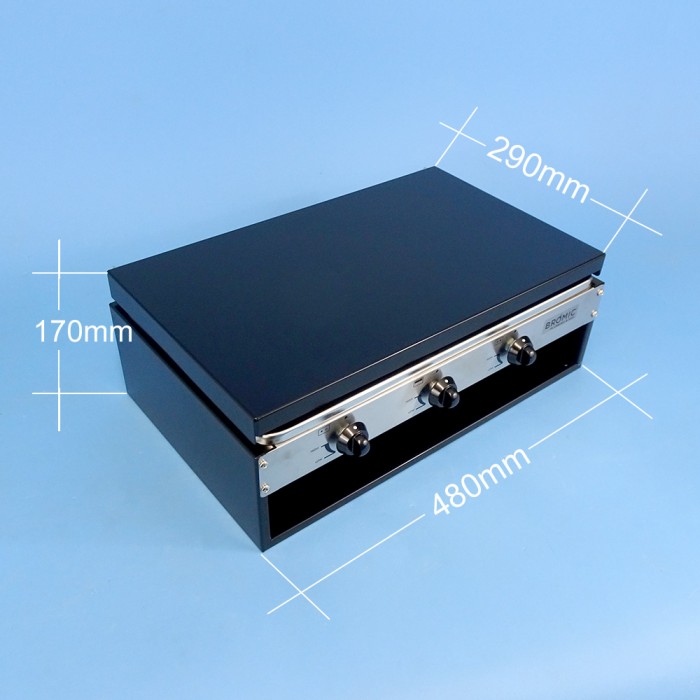

  • Height (mm): 175
  • Width (mm): 480
  • Depth (mm): 290 (requires 330 mm)
  • No. Of Top Burners: 2
  • Griller Burner: Yes
  • Lid: Yes
  • Operating Pressure (kPa): 2.75

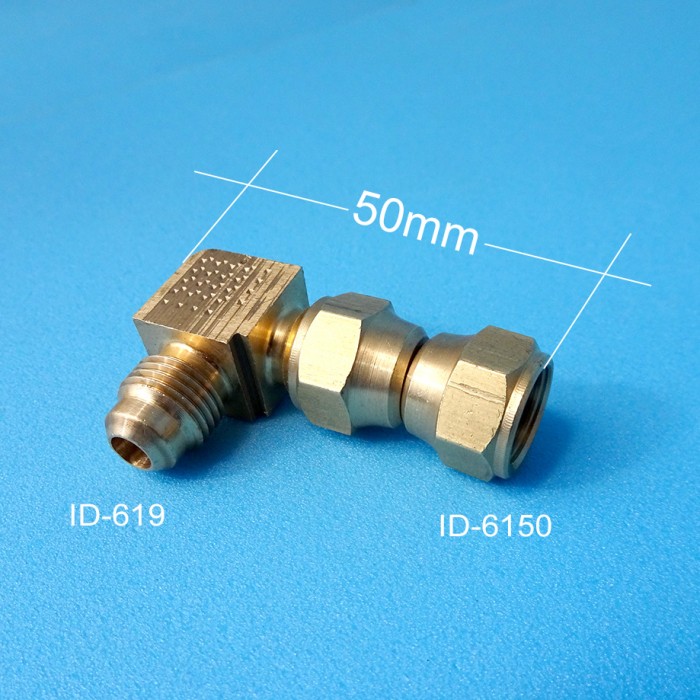

  • Gas Connection: 5/16 inch SAE Male
  • Gas Consumption (per hr, per burner on high): 5.7 MJ
  • Total Burner Heat Output (per hr): 10 MJ
  • Drip Tray: Yes
  • Shipping Weight: 6.15 Kgs.
  • Shipping Dimensions: 19 cm x 39 cm x 51 cm

Our Comments

AS/NZS 5601.2 Gas Installations – LP Gas installations in caravans and boats for non-propulsive purposes clause 6.3 states all appliances shall be fitted with flame safeguard systems to all burners.



Frequently Asked Questions

1.Can this cooktop be connected to a caravan bayonet outlet?

Answer: Only if you arrange a suitable adaptor by a licensed gas plumber, the cooker has a 5/16 inch SAE male gas inlet and there is no off‑the‑shelf bayonet kit supplied.

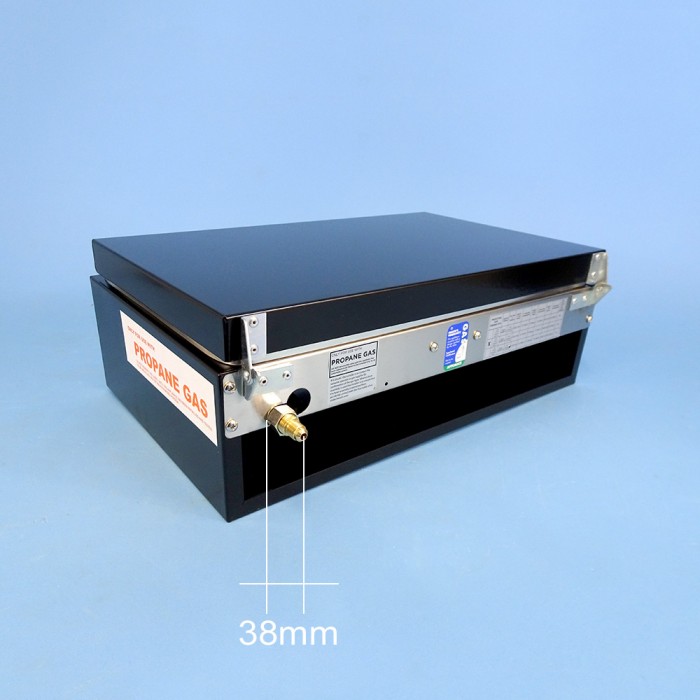

2.What size and location is the gas inlet, and how much depth clearance do I need?

Answer: The gas inlet is a 5/16 inch SAE male located at the rear. The physical unit depth is 290 × (W × H × D mm) but allow about 330 mm overall depth to make the rear connection.

3.Does this model include flame safety/thermocouple protection?

Answer: Yes, this model is fitted with flame safeguard systems that stop gas to a burner if its flame is blown out, meeting caravan/boat low‑pressure appliance requirements.

4.Is there a mounting kit included for installation?

Answer: No mounting kit is supplied. The cooker can be secured to a bench, for example by screwing it down, if required.
5.Is a wind guard available for this cooktop?
Answer: No, there is no wind guard available for this model.
